Flexible Pipe Loop Applications


Tri-Flex Loop hanging down—horizontal run



The Tri-Flex Loop™ should hang straight down and be free to flex in any direction.

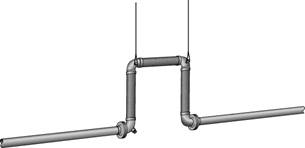

Tri-Flex Loop straight up—horizontal run



Support must be provided to prevent the loop from leaning.



Tri-Flex Loop horizontal—horizontal run

This orientation is recommended for all steam lines*. Support must be provided to prevent the loop from drooping or torquing the pipe.

*Any other orientation may cause condensate to collect.



Tri-Flex Loop horizontal—horizontal run on floor

This orientation is recommended for all steam lines*.

*Any other orientation may cause condensate to collect.



Tri-Flex Loop—vertical run



The Tri-Flex Loop™ must be supported with UL-listed cable kit and UL-listed hanging lug.

Click here for a Tri-Flex Loop™ catalog.

Click here for a UL-listed cable kit catalog.

Click here for a summary of the advantages of using Tri-Flex Loops™ for all your flexible pipe loop applications.




UL-listed hanging lug for Tri-Flex Loop


Each Tri-Flex Loop™ has a UL-listed hanging lug welded onto each of the two internal elbows.
