Specifications for 3" Model 315F:  Horizontal

Click here to enlarge: S_315F.jpg

Model

 CA-DSA # Length Height Dia Dia on center Dia of holes # of holes Nominal pipe size Applic. data
Max Press Fuel
315F 45R-113R 7-1/2" 5-3/8" 7-1/2" 6" 3/4" 4 3" 60 psi Dry fuel gas
Click here for pdf brochure for Model 315F
Specifications for 3" Model VB-315F: Vertical Bottom-In

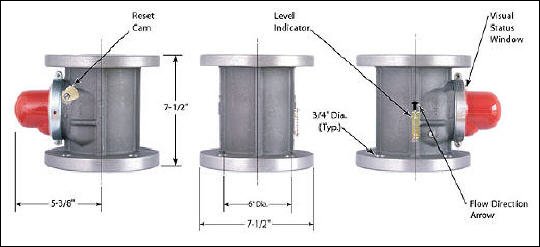

Click here to enlarge: S_VB-315F.jpg

Model

 CA-DSA # Length Height Dia Dia on center Dia of holes # of holes Nominal pipe size Applic. data
Max Press Fuel
VB-315F 60-02 5-3/8" 7-1/2" 7-1/2" 6" 3/4" 4 3" 60 psi Dry fuel gas
Click here for pdf brochure for Model VB-315F
Specifications for 3" Model VT-315F:  Vertical Top-In

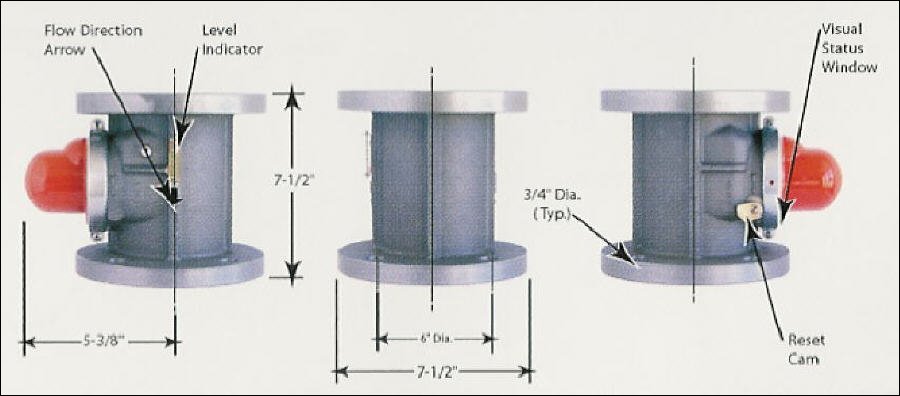

Click here to enlarge: S_VT-315F.jpg

Model

 CA-DSA # Length Height Dia Dia on center Dia of holes # of holes Nominal pipe size Applic. data
Max Press Fuel
VT-315F 60-04 5-3/8" 7-1/2" 7-1/2" 6" 3/4" 4 3" 60 psi Dry fuel gas

Capacity Chart for 3" CALIFORNIA Valves

For determining approximate pressure drops at selected natural gas pressures (@ 60° F) and loads (in CFH = cubic feet per hour); CV = 336 (equivalent length is 9.1’ of 3" pipe)

Pressure drop IWC 8 IWC 14 IWC 3 PSI 10 PSI 15 PSI 20 PSI
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
2.0
3.0
4.0
5.0		 5,793
8,192
10,032
11,582
12,948
14,182
15,316
16,372
17,363
18,300
25,849
31,620
36,468
40,724		 5,834
8,250
10,103
11,665
13,040
14,283
15,426
16,489
17,487
18,431
26,034
31,847
36,731
41,017		 6,296
8,903
10,903
12,588
14,073
15,414
16,648
17,795
18,873
19,892
28,103
34,384
39,663
44,299		 7,438
10,518
12,881
14,872
16,627
18,212
19,670
21,027
22,300
23,505
33,217
40,653
46,908
52,406		 8,156
11,534
14,125
16,309
18,233
19,972
21,571
23,059
24,456
25,778
36,433
44,594
51,462
57,502		 8,816
12,467
15,268
17,629
19,709
21,589
23,318
24,926
26,437
27,866
39,388
48,215
55,045
62,181
