Specifications for 2" Model 314:  Horizontal

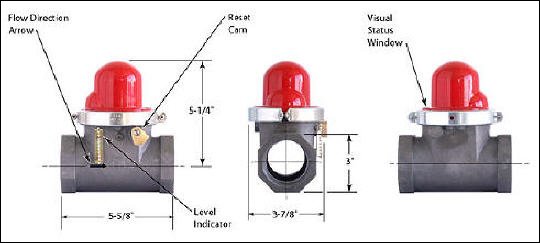

Click here to enlarge: S_314.jpg

Model

CA-DSA # Length Height Width Octogon Nominal pipe size Threads per inch Applic. data
Max Press Fuel
314 45R-113R 5-5/8" 5-1/4" 3-7/8" 3" 2" 11-1/2 60 psi Dry fuel gas
Click here for pdf brochure for Model 314
Specifications for 2" Model VB-314: Vertical Bottom-In

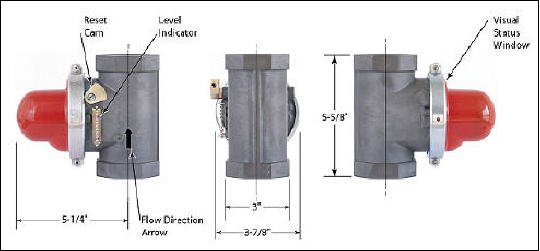

Click here to enlarge: S_VB-314.jpg

Model

CA-DSA # Length Height Width Octogon Nominal pipe size Threads per inch Applic. data
Max Press Fuel
VB-314 60-02 5-1/4" 5-5/8" 3-7/8" 3" 2" 11-1/2 60 psi Dry fuel gas
Click here for pdf brochure for Model VB-314
Specifications for 2" Model VT-314:  Vertical Top-In

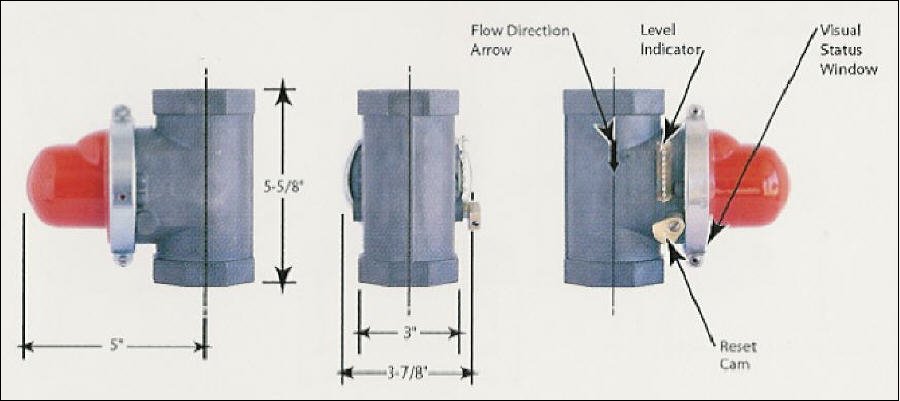

Click here to enlarge: S_VT-314.jpg

Model

CA-DSA # Length Height Width Octogon Nominal pipe size Threads per inch Applic. data
Max Press Fuel
VT-314 60-04 5-1/4" 5-5/8" 3-7/8" 3" 2" 11-1/2 60 psi Dry fuel gas

Capacity Chart for 2" CALIFORNIA Valves

For determining approximate pressure drops at selected natural gas pressures (@ 60° F) and loads (in CFH = cubic feet per hour); CV = 164 (equivalent length is 4.6’ of 2" pipe)

Pressure drop IWC 8 IWC 14 IWC 3 PSI 10 PSI 15 PSI 20 PSI
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
2.0
3.0
4.0
5.0
2,828
3,998
4,896
5,653
6,320
6,922
7,476
7,991
8,475
8,932
12,617
15,434
17,800
19,877
2,848
4,027
4,931
5,693
6,365
6,971
7,529
8,048
8,535
8,996
12,707
15,545
17,928
20,020
3,073
4,346
5,322
6,144
6,869
7,524
8,126
8,686
9,212
9,709
13,717
16,783
19,359
21,622
3,630
5,134
6,287
7,259
8,115
8,889
9,601
10,263
10,885
11,473
16,213
19,842
22,895
25,579
3,981
5,630
6,894
7,960
8,899
9,748
10,529
11,255
11,937
12,582
17,783
21,766
25,118
28,066
4,303
6,085
7,452
8,605
9,620
10,537
11,381
12,166
12,904
13,601
19,225
23,533
27,160
30,350
