Specifications for 8" Model 319F:  Horizontal

Click here to enlarge: S_317F.jpg

Model

CA-DSA # Length Height Dia Dia on center Dia of holes # of holes Nominal pipe size Applic. data
Max Press Fuel
319F 62-02 16-3/8" 9-5/8" 13.5" 11.75" 7/8" 8 8" 60 psi Dry fuel gas

Click here for pdf brochure for Model 319F

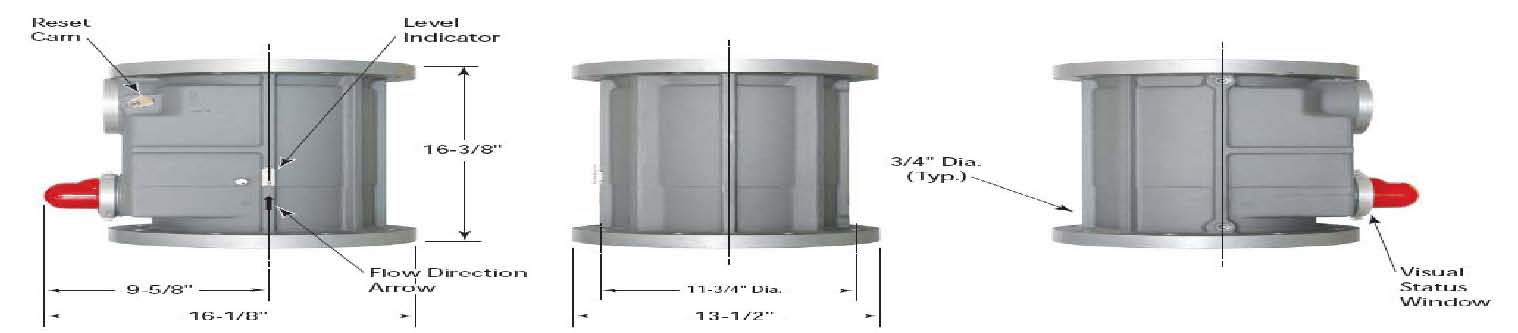

Specifications for 8" Model VB-319F: Vertical Bottom-In

Click here to enlarge: S_VB-317F.jpg

Model

CA-DSA # Length Height Dia Dia on center Dia of holes # of holes Nominal pipe size Applic. data
Max Press Fuel
VB-319F 62-02 16-1/8" 16-3/8" 13.5" 11.75" 7/8" 8 8" 60 psi Dry fuel gas

Click here for pdf brochure for Model VB-319F

Specifications for 8" Model VT-319F:  Vertical Top-In

Click here to enlarge: S_VT-317F.jpg

Model

CA-DSA # Length Height Dia Dia on center Dia of holes # of holes Nominal pipe size Applic. data
Max Press Fuel
VT-319F 62-02 16-1/8" 16-3/8" 13.5" 11.75" 7/8" 8 8" 60 psi Dry fuel gas

Capacity Chart for 8" CALIFORNIA Valves

For determining approximate pressure drops at selected natural gas pressures (@ 60 F) and loads (in CFH = cubic feet per hour); CV = 3136 (equivalent length is 9’ of 8" pipe)

Low-pressure systems

Medium-pressure systems

Pressure drop (IWC) Load (SCFH) for given inlet pressure
8 IWC 14 IWC
0.01

0.02

0.03

0.04

0.05

0.06

0.07

0.08

0.09

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

1.0

2.0

3.0

4.0

5.0

17,089

24,167

29,598

34,167

38,210

41,856

45,209

48,330

51,261

54,034

76,406

93,566

108,028

120,765

17,212

24,340

29,811

34,422

38,484

42,157

45,534

48,677

51,630

54,422

76,955

94,239

108,805

121,633

133,227

143,884

153,800

163,111

171,913

242,833

297,055

342,600

382,580

Pressure drop (PSI) Load (SCFH) for given inlet pressure
3 PSI 5 PSI
0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

2.0

2.1

2.2

2.3

2.4

2.5

2.6

2.7

308,644

435,247

531,541

612,004

682,260

745,202

802,553

855,437

904,639

960,730

994,144

1,035,216

1,074,216

1,111,362

1,146,834

1,180,783

1,213,337

1,244,604

1,274,681

1,303,649

325,713

459,451

561,265

646,420

720,845

787,586

848,460

904,651

956,985

1,006,064

1,052,343

1,096,177

1,137,849

1,177,588

1,215,584

1,251,995

1,286,956

1,320,582

1,352,973

1,384,216

1,414,386

1,443,551

1,471,770

1,499,097

1,525,580

1,551,262

1,576,182
